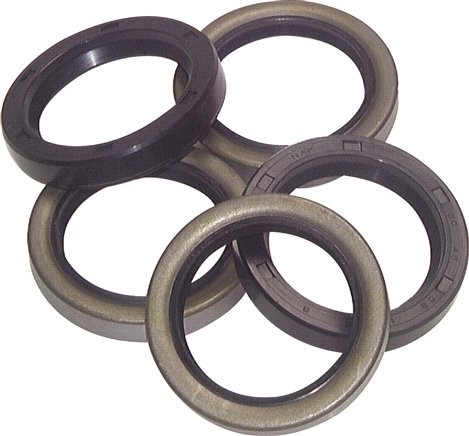

NBR Design AS Rotary Shaft Seal 48x70x9mm [5 Pieces]

Description

This rotary shaft seal has an internal diameter of 48 mm, an external diameter of 70 mm and a 9 mm width. It is used to seal rotating machine components.

This seal consists of an NBR ring with a reinforcement plate and a worm spring made of spring steel. The external rubber-elastic jacket provides stable sealing and tight fit. Suitable for a shaft circumferential speed of up to 14 m/s.

Changing the seal frequently prevents damage to the housing hole. The seal must be assembled according to DIN 3760 to function optimally.

Pros:

• Suitable for temperatures from -30 to 100°C (-22 to 212°F)
• There is no frictional corrosion thanks to the rubber-elastic jacket
• Provided with a dust lip for protection from dirt and corrosion
